Thunderlord Power Power Supply Guide: Voltage, Current, and Precision Settings

30-Second Summary

Voltage is not a dial-it-in-and-forget-it setting — it's a dynamic tool that responds to your hand speed, the specific needle configuration, and the technique you're executing in the moment. Thunderlord Power power supplies are engineered for 0.1V precision adjustment, 5-10 preset memory, and dual-mode compatibility (wired and wireless). This guide covers the electrical fundamentals (V/A/W relationships), voltage ranges for specific techniques, step-by-step setup, and troubleshooting for the most common power issues. Includes pricing for US, UK, and AU markets.

Introduction

Most tattoo artists treat their power supply like a light switch — they turn it on, set it to a voltage they've always used, and don't think about it again until something breaks. This approach wastes the potential of both the power supply and the machine it's driving.

Voltage affects every variable of the tattoo process: the depth of needle penetration, the rate of ink deposition, the speed at which you can work without causing trauma, and the crispness or softness of the lines you place. Getting voltage right isn't about finding one perfect number — it's about understanding the relationship between voltage, hand speed, and needle configuration, and adjusting dynamically as you work through different parts of a tattoo.

Thunderlord Power power supplies are built for precision work. This guide shows you how to use every feature they offer, from the 0.1V adjustment increments to the preset memory system, so you can stop fighting your equipment and start working with it.

1. Electrical Fundamentals: V, A, and W Explained

1.1 Voltage (V): The Driving Force

Voltage is the electrical potential difference that drives current through the machine's circuit. In a tattoo machine, higher voltage means more electromagnetic force pulling the armature down faster, which translates to:

• Faster needle cycle (more punctures per second)
• Deeper skin penetration (needle goes further into the dermis)
• More ink deposited per hit

Thunderlord Power power supplies offer a range of 3-18V with 0.1V adjustment increments. The range matters — different techniques and needle configurations require different voltage windows, and a power supply with a limited range constrains what you can do.

1.2 Current (A): The Flow Rate

Current (measured in Amps) is the rate at which electrical charge flows through the circuit. In a properly functioning tattoo machine at normal operating voltages, current draw is typically 0.5-2A depending on the machine's coil configuration and the voltage setting. You don't typically adjust current directly — it's a consequence of voltage and machine impedance. However:

• If your machine is drawing significantly more current than normal at a given voltage, that's a sign of a problem (short circuit, damaged coil, contamination in the armature)
• If current drops unexpectedly, the machine will feel sluggish even if voltage reads correctly — a loose connection or failing capacitor can cause this

Thunderlord Power power supplies display real-time current draw, which serves as both a diagnostic tool and a performance indicator. If you notice your current readings changing without you adjusting voltage, investigate the machine and cables before your session.

1.3 Power (W): The Total Energy

Power (Watts) is the product of voltage × current (W = V × A). A 10V machine drawing 1A consumes 10W of power. Power matters for heat: a machine running at high voltage and high current generates more heat in the coils, which over extended sessions can affect the magnetic properties of the coils and change the machine's behavior mid-session.

For most tattoo sessions, you're operating in the 5-20W range. If you're regularly pushing into the 25-30W range, you're either running too high a voltage for your machine's design or there's a fault causing excess current draw. Check your machine and connections.

2. Voltage Ranges by Technique

2.1 Line Work (Solid Lines and Outlines)

Line work requires consistent, deep penetration to deposit ink in the lower dermis where it stays permanently. The needle moves in and out rapidly, and the ink needs to be placed in a clean, crisp path. Voltage range for line work:

• 6-8V: Standard line work for most skin types. At 6V, you get clean, controlled lines with moderate ink saturation. At 7-8V, the machine runs faster, covering more area per second but requiring faster hand speed to maintain control.
• 8-10V: Bold lines and heavy saturation work. Higher voltage deposits more ink per hit, creating bolder lines faster, but sacrifices some detail control. Use for large-scale work or when laying in heavy black areas.

Hand speed adjustment: When you increase voltage, you must increase hand speed proportionally. A machine at 8V hitting the skin 150 times per second with a slow hand creates trauma — too much ink, too much skin damage. At higher voltages, your hand needs to move faster to maintain the correct ink-to-trauma ratio.

2.2 Shading (Gradients, Soft Work, Whip Shading)

Shading requires less aggressive penetration than lining — you want to deposit ink closer to the surface in controlled quantities to create smooth gradients. Higher voltage in shading typically causes issues because it pushes ink too deep too fast, creating solid areas where you want gradients:

• 7-10V: Soft shading and whip shading. Working in the 7-9V range allows the needle to deposit ink at a moderate rate that you can control by hand speed and angle. 9-10V is useful for packing shade into larger areas where speed matters more than gradual gradient.
• Technique note: For whip shading (lifting the needle slightly at the end of each stroke to create a feathered edge), work at 7-8V. The lower voltage gives you more control over the subtle hand movements required for whip technique.

2.3 Color Packing (Solid Fill Areas)

Solid color packing requires consistent coverage of large areas, typically with a larger needle grouping (mag coils, flat shaders, large round liners). The voltage requirements are lower than lining because you want controlled penetration that's consistent across the entire packed area:

• 5-8V: Standard packing voltage. At 5-6V, the machine runs slower with deeper penetration — useful for heavy packers on thicker skin. At 7-8V, you get faster coverage with slightly shallower penetration — useful for larger areas where you need to complete the tattoo in one session without excessive trauma.

2.4 Quick Reference Chart

3. Thunderlord Power Power Supply Product Line

3.1 Product Range Overview

Thunderlord Power offers three power supply categories to cover different working styles:

• Thunderlord Power Wired Series: Traditional plug-in power supplies with a 6-foot (1.8m) power cable. Maximum reliability for studio work where you don't move around much. Cable provides consistent power delivery with zero wireless interference. The Wired Series includes the TP-100 (standard) and TP-150 (high-output for heavy machines).
• Thunderlord Power Wireless Series: Battery-powered power supplies with integrated clip cord. TP-W1 and TP-W2 models. Freedom of movement during sessions — no cable to manage, no table cord clutter. Battery life: 8-12 hours per charge depending on voltage setting and machine draw.
• Thunderlord Power Dual-Mode Series: The flagship TP-D1 combines wired and wireless modes in one unit. Switch between them mid-session with a button press. Ideal for artists who want the reliability of wired for long sessions but need wireless flexibility for certain techniques or client positions.

3.2 Core Features Across All Models

Regardless of which model you choose, Thunderlord Power power supplies share these key features:

• 0.1V precision adjustment: Not all power supplies offer this granularity. The difference between 7.0V and 7.1V is significant for fine-line work where you're working at the threshold of what the machine can do cleanly. Thunderlord Power's 0.1V increments give you the precision to hit exactly the voltage you need, not just the nearest approximation.
• 5-10 preset memory: Store your most frequently used voltage settings by technique. Most artists configure presets for: (1) Fine line work, (2) Standard lining, (3) Bold lines/black packing, (4) Soft shading, (5) Color packing. With one button press, the power supply recalls your saved voltage, and if the machine supports it, your saved hit depth or other machine parameters.
• Real-time display: LED or LCD display showing current voltage, current draw (A), and power consumption (W). This data helps you diagnose machine issues before they become problems and confirms that the voltage you're setting is actually what the machine is receiving.
• Voltage memory: If you turn the power supply off mid-session, it remembers the last voltage setting when you turn it back on. You don't lose your setting if you accidentally hit the power switch or if there's a power outage.

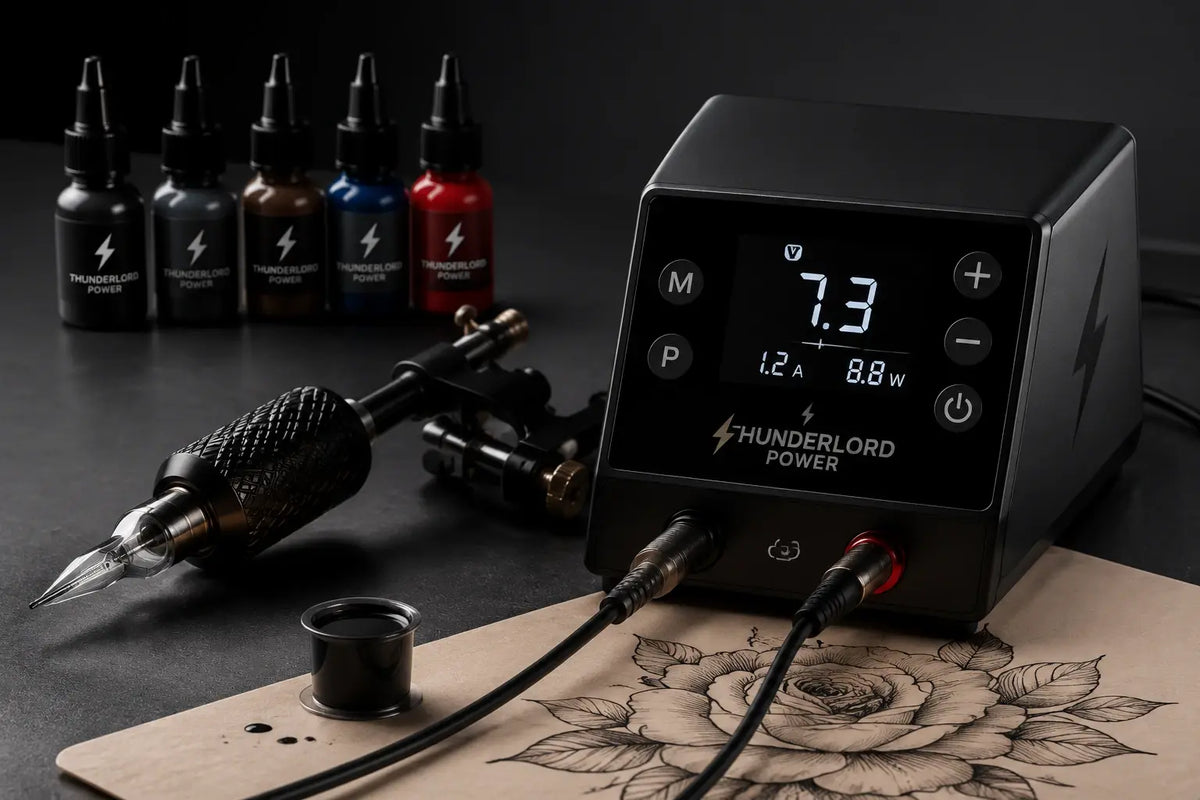

3.3 Display Panel Reading Guide

The Thunderlord Power LED display shows multiple data points simultaneously:

• Voltage readout (V): The current output voltage, adjustable in 0.1V steps from 3-18V. Confirm this matches your intended setting — if there's a discrepancy between what you set and what the display shows, there's a calibration issue that needs service.
• Current draw (A): Real-time current measurement. Normal range: 0.5-2.0A depending on voltage and machine. If current spikes above 2.5A without you changing voltage, there's a short circuit in the machine or cable. If current is below 0.3A and the machine feels sluggish, check connections.
• Mode indicator: Shows wired or wireless mode (Dual-Mode series). If you're in wireless mode and the indicator shows wired, the wireless module may need reconnection.
• Preset number: Shows which preset is currently active (P1-P10). If you think you're on a preset but the display shows "P0" or a different number, the preset didn't activate.

4. Step-by-Step Setup and Operation

4.1 Initial Setup

1. Place the power supply on a stable, dry surface within easy reach but away from the tattoo work area. For wired units, ensure the power cable can reach your machine without tension or sharp bends.
2. Connect the power cable to the machine. For wired units, use the standard RCA or custom connector on your specific machine. For wireless units, attach the wireless clip module to the machine's binding post or RCA input.
3. Power on the unit. The display will show the last-used voltage setting (Thunderlord Power remembers your last session's settings).
4. Set your voltage using the adjustment buttons. The up/down buttons adjust in 0.1V increments per press. Hold the button for fast scrolling through the range.

4.2 Configuring Preset Memory

To save your current voltage to a preset slot:

1. Set the voltage to your desired setting (e.g., 7.3V for standard lining)
2. Press and hold the "MEM" button for 3 seconds
3. The display will flash "SAV" briefly, then return to the voltage display
4. Your voltage is now saved to the currently selected preset (P1-P10)
5. To cycle through presets, press the preset button (P) to cycle from P1 → P2 → ... → P10 → back to manual mode

Tip: Label your presets consistently. Most artists use: P1 = Fine Line, P2 = Standard Line, P3 = Bold/Black, P4 = Shading, P5 = Packing. Write these on a small label on the back of the unit so you don't forget mid-session.

4.3 Technique-Specific Settings

Here's the recommended starting configuration for each technique on a standard setup:

• Fine line (0.25-0.35mm needle): Set voltage to 5.5-6.5V. Load your smallest needle configuration. Do a test stroke on practice skin — if it feels too sluggish, step up by 0.2V. If it's tearing or pulling, step down by 0.2V. Find the minimum voltage that gives you clean penetration and work there.
• Standard line: Set voltage to 7.0-7.5V. Standard lining is the most common technique — most artists find 7.2V to be a reliable all-around setting. If you're doing a large piece with lots of line work, you might drop to 6.8V for less hand fatigue over the long session.
• Bold lines and black packing: Set voltage to 8.5-9.5V. Higher voltage for more aggressive ink deposit. If you notice the lines are wider than you want (voltage is pushing the needle deeper, causing a larger entry wound), drop to 8.0V and increase hand speed.
• Shading: Set voltage to 7.5-8.5V depending on the shading style. Whip shading at the lower end (7.5V), packed shading at the higher end (8.5V).

4.4 Mid-Session Adjustments

Voltage isn't a set-once setting. As you move through different parts of a tattoo, you should adjust voltage to match the technique:

1. When transitioning from lining to shading, drop voltage by 1-2V
2. When moving from fine details to bold coverage, increase voltage by 1-2V
3. If you notice the machine is skipping (hitting inconsistently), increase voltage by 0.3V at a time until the problem resolves — or reduce hand speed if you're moving too fast for the current voltage
4. If the machine feels too aggressive (causing excessive trauma), reduce voltage by 0.5V and observe the difference

5. Troubleshooting Common Power Issues

5.1 Voltage Reading Unstable (Fluctuating Display)

Symptoms: The voltage display jumps around (e.g., showing 7.0V, then 6.8V, then 7.1V in rapid succession)

Most common causes: Loose connection between the power cable and machine, or a damaged cable with intermittent internal breaks

Steps to resolve:

1. Turn off the power supply
2. Inspect the cable connection at both ends — the machine binding posts and the power supply output
3. Remove and reconnect the cable, ensuring it's fully seated
4. Try a different cable if available
5. If the problem persists, the power supply may need calibration service

5.2 Machine Won't Start / No Response When Powered On

Symptoms: Power supply powers on (display lights) but machine doesn't activate when you press the foot switch

Most common causes: Dead or low battery (wireless), blown fuse (wired), or foot switch malfunction

Steps to resolve:

1. For wireless units: Check battery level on the display. If it shows below 20%, charge the unit. If the unit doesn't respond at all, connect to wired power as a test.
2. For wired units: Locate the fuse compartment (typically on the back panel). Replace the fuse with the same rating (usually 2A for standard units). If the new fuse blows immediately, there's a short circuit in the machine or cable — do not use the unit until the short is found.
3. Test the foot switch: Disconnect it from the circuit and bridge the connection with a paperclip or wire. If the machine activates, the foot switch is faulty — replace it.

5.3 Display Shows "Err" or Blank Screen

Symptoms: The LED display shows an error code or goes blank mid-session

Most common causes: Internal electronic fault or power surge damage

Steps to resolve:

1. Turn off and unplug the unit completely (wired models)
2. Wait 30 seconds, then power back on
3. If "Err" persists, check the user manual for the specific error code meaning (different manufacturers use different codes)
4. For persistent errors, contact Thunderlord Power's technical support with the model number and error code — do not attempt to open the unit yourself

5.4 Increased Noise / Buzzing from the Machine

Symptoms: The machine sounds different than usual — more buzzing, grinding, or rattling noise

Most common causes: Internal fan noise (normal at high voltage), capacitor degradation (if the noise has changed over time), or loose components in the machine

Steps to resolve:

1. If the noise is new and accompanied by inconsistent voltage readings, the power supply's internal components may be degrading — contact Thunderlord Power for service evaluation
2. If the noise is present only at higher voltages (above 10V), it's likely the fan — this is normal operation
3. If the noise is accompanied by the machine running inconsistently (different speed at the same voltage over time), the power supply capacitors may need replacement — this is a normal wear item on older units

6. Pricing and Purchasing Reference

How-To: Setting Up Your Thunderlord Power Power Supply for a Session

Time required: 5 minutes at session start
Tools needed: Thunderlord Power power supply, machine, cables, foot switch (optional for wireless)

1. Place the power supply on a stable, clean surface within reach of your working area. Ensure it's not in the path of any potential splatter or fluid exposure.
2. Connect the power cable to the machine's binding posts (wired) or attach the wireless clip module (wireless). Ensure connections are fully seated and tight.
3. Power on the unit. Confirm the display shows your last-used voltage setting.
4. Select your first technique preset (P1 for fine line work, for example) and verify the voltage matches your intended setting.
5. Do a test stroke on practice skin or on an inconspicuous area of the client before beginning the actual tattoo. Confirm the machine sounds and feels correct at the set voltage.
6. Adjust voltage as needed based on what you feel during the test stroke. Remember: 0.2V adjustments make a noticeable difference in fine line work.
7. During the session, switch presets as you move between techniques. After each adjustment, do a brief test stroke to confirm the machine is performing as expected before resuming work.

Frequently Asked Questions (FAQ)

Q: What's the difference between 0.1V and 0.5V precision adjustment? Does it actually matter?
A: It matters more for fine line work than for bold work. At 6.0V vs 6.5V, the difference is significant for a 0.25mm needle doing fine detail — the machine's behavior changes noticeably with those smaller adjustments. At 9.0V vs 9.5V for bold packing, you probably won't feel a difference. A power supply with 0.1V precision gives you the ability to tune precisely for fine work; a supply with only 0.5V increments is adequate for bold work but limits your fine-line potential.

Q: My voltage display shows the voltage I set, but the machine feels weak. What's wrong?
A: If the display shows correct voltage but the machine lacks power, the most common causes are: (1) Loose cable connection — the voltage is reaching the supply but not the machine; (2) Damaged cable with internal breaks — the voltage display is measuring at the supply but the cable isn't transmitting fully; (3) Machine issue — contaminated armature, failing coils, or mechanical binding. Check connections first, then try a different cable, then have the machine inspected.

Q: Can I run a wireless clip module while the power supply is connected to a battery pack (not plugged in)?
A: On Thunderlord Power Dual-Mode (TP-D1) units, you can switch between wired and wireless modes. If you're in wired mode and the unit is unplugged, it will switch to wireless mode automatically. For dedicated wireless units (TP-W1, TP-W2), the wireless module runs off the internal battery and the wired connection is not available simultaneously.

Q: How often does the power supply need calibration?
A: With normal use, a quality power supply should not need frequent calibration. If you notice persistent discrepancies between the set voltage and the actual output (verified with a multimeter), the unit needs service. Thunderlord Power recommends annual calibration verification if the unit is used heavily, or any time you notice inconsistent performance.

Q: Should I leave my power supply on during a long session?
A: Yes, leaving the power supply on for the duration of a session is standard practice — repeatedly turning it on and off causes more wear than sustained operation. The voltage memory function means you don't lose your settings if the unit is accidentally turned off. If you notice the unit heating up significantly after extended use at high voltage, turn it off for 5-10 minutes to cool down and resume.

Q: My power supply shows current draw above 2.5A at my usual voltage. Is this dangerous?
A: Current draw above normal range (0.5-2.0A) indicates a fault condition — typically a short circuit in the machine, cable, or connection. Do not continue using the unit until the fault is identified and resolved. A sustained high-current condition can damage the power supply, the machine, or create a fire risk. Turn off immediately and diagnose the short before further use.

Conclusion

Your power supply is not a simple on/off device — it's a precision instrument that, when configured correctly, gives you the voltage control to execute every technique with accuracy. Thunderlord Power's 0.1V precision adjustment, preset memory system, and real-time current monitoring are features designed for professional artists who want to stop fighting their equipment and start working with it.

The practical framework: understand the voltage requirements for each technique, configure your presets for your most common workflows, use real-time current monitoring as a diagnostic tool, and adjust voltage dynamically as you move through a session. Voltage is not a one-time setting — it's a live adjustment tool that responds to what you're doing in real time.

If you're running on presets without ever adjusting between them, or running the same voltage for every technique regardless of what you're doing, you're leaving performance potential on the table. Your machine, your ink, and your technique deserve a power supply you're actually using to its full capability.
